xtender lithium batteries

recommended:

follow batteries have been tested and are official supported

4K4/Pro - 5K3/XP/LV

LVL - LVS - B-BOX Pro

UP2500;
US2000/3000 C

Li.ON

LiRack

eBick Pro 180;
eBick Ultra 100;

compatibility with lithium batteries

Studer devices are compatible with all battery types, including lithium batteries. Communication plays a key role with lithium batteries as they differentiate from other batteries by having an integrated Battery Management System (BMS).

There are two main types of lithium batteries: with and without communication. Most lithium batteries require communication between their BMS and the rest of the system for an optimal management of the battery (safety and lifetime). Every battery uses its own specific protocol for communication.

For an effective communication with lithium batteries Studer has conceived the Xcom-CAN, which creates a bridge between the BMS and the Studer bus. The Xcom-CAN has several protocols implemented for lithium battery management, making Studer products compatible with many lithium batteries.

When the BMS is connected to an Xcom-CAN it takes control over the battery management. The Xcom-CAN will control and adjust the Studer device configuration according to the information received from the BMS.

Only two parameters need to be set to configure an Xtender system with lithium batteries: SOC for backup {6062} and SOC for grid feeding {6063}.

More detailed technical information is available in the Xcom-CAN manual on the Download section under the heading "Accessories user manuals".

(1) Jumper array for RJ-45 (third party side) pinout arrangement.
(2) DIP switches to select the protocol/battery model (switch 1 to 5) and the bus speed (switch 6 to 8) whenever the protocol requires it.

list of lithium batteries:

*BYD

The models Premium LVL/ LVS, B-Box Pro 2.5 - 10.0, B-Box Pro 13.8 and LV Flex at 48Vdc from the chinese brand with technology LiFePO4 are compatible with xtender range of products. Capacity of these batteries can be modulable from 2 to 441 kWh

Configuration of Xcom-CAN as follow:

Please note: the mentioned reference must be confirmed by battery's manual. For GND (ground) reference please contact battery's manufacturer.

*CEGASA

The model eBick Pro 180 at 48Vdc from the spanish brand with technology LiFePO4 is compatible with xtender range of products. Capacity of this battery can be modulable from up to 3 MWh.

Configuration of Xcom-CAN as follow:

The model eBick Ultra 100 at 48Vdc from the spanish brand with technology LiFePO4 is compatible with xtender range of products. Capacity of this battery can be modulable from up to 3 MWh.

Configuration of Xcom-CAN as follow:

The model eBick Ultra 175

*Pylontech

The models UP2500, US2000/C, US3000/C at 24/48Vdc from the chinese brand with technology LiFePO4 is compatible with xtender range of products. Capacity of these batteries can be modulable from 2.4 to 140 kWh

Configuration of Xcom-CAN as follow:

Please note: the mentioned reference must be confirmed by battery's manual. For GND (ground) reference please contact battery's manufacturer.

*Sunlight

The model Li.ON ESS & powerESS at 48Vdc from the greek brand with technology LiFePO4 is compatible with xtender range of products. Capacity of these batteries can be modulable from 5.12 to 384kWh

Configuration of Xcom-CAN as follow:

*WECO

The models 4K4 - Pro / 5K3 - LV Dual Voltage, XP and rack versions at 48Vdc from the italian brand with technology LiFePO4is compatible with xtender range of products. Capacity of these batteries can be modulable from 5 to 100 kWh

Configuration of Xcom-CAN as follow:

*ZYC

The model SYMPO at 48Vdc from the chinese brand with technology LiFePO4 is compatible with xtender range of products.

Configuration of Xcom-CAN as follow:

Archimede Energia

The model FXO-0XX-XXX-TCX at 24/48Vdc from the italian brand with technology LiFePO4/LiNMC is compatible with xtender range of products. Capacity of these batteries can be modulable from 5.4 to 481 kWh

Configuration of Xcom-CAN as follow:

Autarctech

The model LiRack / LiTerminal at 48Vdc from the german brand with technology LiFeMnPO4 is compatible with xtender range of products. Capacity of these batteries can be modulable from 5.6 to 224 kWh

Configuration of Xcom-CAN as follow:

BlueNova

The model BN 13-26-52 series at 12/24/48 Vdc from the south-african brand with technology LiFeYPO4 is compatible with xtender range of products. Capacity of these batteries can be modulable from 2 to 65 kWh

Configuration of Xcom-CAN as follow:

-

BMZ

The models ESS 3.0 – ESS 9.0 – X at 48Vdc from the german brand with technology LiNMC/LiNCA are compatible with xtender range of products. Capacity of these batteries can be modulable from 3 to 120 kWh

Configuration of Xcom-CAN as follow:

BSLBATT

The model LFP Battery at 24/48Vdc from the chinese brand with technology LiFePO4 is compatible with xtender range of products. Capacity of these batteries can be modulable from 2.4 to 153.6kWh

Configuration of Xcom-CAN as follow:

-

Commeo

The model Commeo 48V at 48Vdc from the german brand with technology LiNMC is compatible with xtender range of products. Capacity of these batteries can be modulable from 1.5 to 36 kWh

Configuration of Xcom-CAN as follow:

Cosun

The model RS-Box at 48Vdc from the chinese brand with technology LiFePO4 is compatible with xtender range of products. Capacity of these batteries can be modulable from 5.4 to 481 kWh

Configuration of Xcom-CAN as follow:

-

Discover

The models AES 44-24-2800, 42-48-6650, LITHIUM PRO at 24/48 Vdc series from the canadian brand with technology LiFePO4 is compatible with xtender range of products. Capacity of these batteries can be modulable from 2.8 to 133 kWh

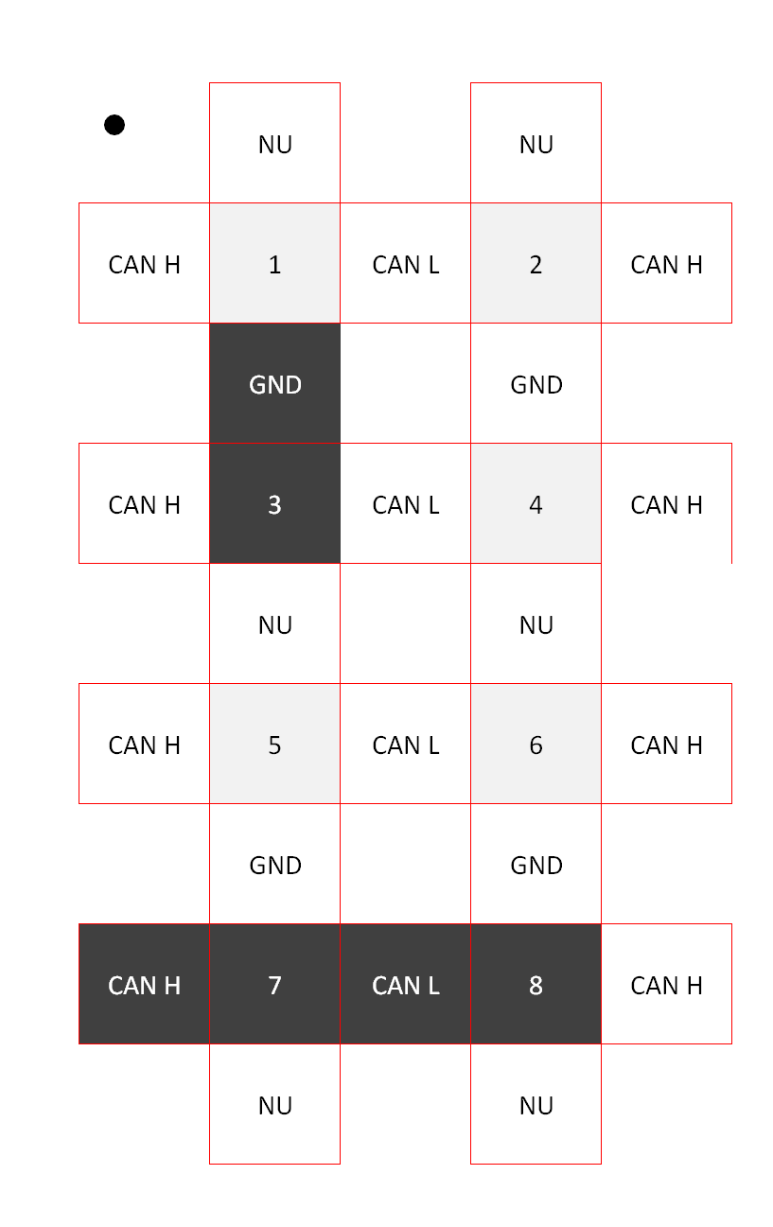

Configuration of Xcom-CAN as follow:

Dyness

The models B4850, B3, Powerbox at 48Vdc from the german brand with technology LiFePO4 is compatible with xtender range of products. Capacity of these batteries can be modulable from 2.4 to 96 kWh

Configuration of Xcom-CAN as follow:

Enershare

The models B100, R100, R200, W100 series at 48 Vdc from the italian brand with technology LiFePO4 are compatible with xtender range of products.

Configuration of Xcom-CAN as follow:

Fortress Power

The model eFlex 5.4 at 48Vdc from the american brand with technology LiFePO4 is compatible with xtender range of products. Capacity of these batteries can be modulable from 5.4 to 81 kWh

Configuration of Xcom-CAN as follow:

Freedom Won

The model Lite Range series is compatible with xtender range of products.

Configuration of Xcom-CAN as follow:

GS-HUB

The model Home Hub series at 48 Vdc from the german brand with technology LiFePO4 is compatible with xtender range of products. Capacity of these batteries can be modulable from 2.5 to 20 kWh

Configuration of Xcom-CAN as follow:

IPS

The model liCube modular, lionic series at 48 Vdc from the swiss brand with technology LiFePO4 are compatible with xtender range of products.

Configuration of Xcom-CAN as follow:

Leclanché

The model Appollion Cube is compatible with xtender range of products.

Configuration of Xcom-CAN as follow:

-

LG Chem

The model RESU series is compatible with xtender range of products.

Configuration of Xcom-CAN as follow:

Midac

The models RES 4.2/5.1 at 48Vdc from the italian brand with technology LiMN/LiFePO4 (respectively) are compatible with xtender range of products. Capacity of these batteries can be modulable from 4.2 to 20.48 kWh

Configuration of Xcom-CAN as follow:

Omega Power

The model Omega Power series from the New Caledonia brand with technology LiFePO4 is compatible with xtender range of products.

Configuration of Xcom-CAN as follow:

The protocol of the battery must be "LuxPower"

Pallas

The model RESS 48V50 series is compatible with xtender range of products.

Configuration of Xcom-CAN as follow:

PowerTech

The model PowerRack at 48Vdc from the french brand with technology LiFePO4 is compatible with xtender range of products. Capacity of these batteries can be modulable from 2.56 to 1280 kWh

Configuration of Xcom-CAN as follow:

Pytes

The model E-BOX-48100R series at 48 Vdc from the chinese brand with technology LiFePO4 is compatible with xtender range of products. Capacity of these batteries can be modulable from 2.4 to 40 kWh

Configuration of Xcom-CAN as follow:

Solar MD

The models SS4074/SS4037/ SS202 are compatible with xtender range of products.

Configuration of Xcom-CAN as follow:

Soltaro

The models SOL-R16-2.5KWH, SOL-R16-5.0KWH at 48 Vdc series from the australian brand with technology LiFePO4 are compatible with xtender range of products. Capacity of these batteries can be modulable from 2.5 to 25 kWh

Configuration of Xcom-CAN as follow:

Super-B

The model 12V SB12V160E-ZC/SB12V100-ZC NOMIA (without BCI) at 12 Vdc from the dutch brand is compatible with xtender range of products.

Configuration of Xcom-CAN as follow:

The model 12V-24V-48V multi batteries system with BCI at 12/24/48 Vdc from the dutch brand is compatible with xtender range of products.

Configuration of Xcom-CAN as follow:

Surya Utama Putra

The models SUPBLP51250, SUPBLP512100 at 48Vdc from the indonesian brand with technology LiFePO4 are compatible with xtender range of products. Capacity of these batteries can be modulable from 2.24 to 144 kWh

Configuration of Xcom-CAN as follow:

www.suryautamaputra.com

Tesvolt

The models TS 25-50 at 48Vdc from the german brand with technology LiFePO4 are compatible with xtender range of products. Capacity of these batteries can be modulable from 4.8 to 307 kWh

Configuration of Xcom-CAN as follow:

Turbo Energy

The models TE LS 48 2.4, TE US3000C, TEUS2000C at 48Vdc from the spanish brand with technology LiFePO4 is compatible with xtender range of products. Capacity of these batteries can be modulable from 2.24 to 144 kWh

Configuration of Xcom-CAN as follow:

Twice

The model Hexagon at 48Vdc from the swiss brand with technology LiFePO4 is compatible with xtender range of products. Capacity of these batteries can be modulable from 5 to 200 kWh

Configuration of Xcom-CAN as follow:

UZ Battery

The model Power Lite L051100-A series at 48 Vdc from the chinese brand with technology LiFePO4 is compatible with xtender range of products. Capacity of these batteries can be modulable from 5.12 to 81.92 kWh

Configuration of Xcom-CAN as follow:

Vision Mechatronics

The model LiRack, Lirack Eco at 48Vdc from the indian brand with technology LiFePO4 are compatible with xtender range of products. Capacity of these batteries can be modulable from 3 to 500 kWh

Configuration of Xcom-CAN as follow:

Zetara

The models ZLES5000R, ZLES5000W, ZLES5000HS, ZLES5000VS series from the chinese brand with technology LiFePO4 is compatible with xtender range of products.

Configuration of Xcom-CAN as follow:

Zruipower

The model Power Base Pro series from the chinese brand with technology LiFePO4 is compatible with xtender range of products.

Configuration of Xcom-CAN as follow:

The models ZR-FC48100, ZR-FC4850 at 48 Vdc series from the chinese brand with technology LiFePO4 are compatible with xtender range of products.

Configuration of Xcom-CAN as follow:

BMS

BMS

[BMS] Solarni Panely

The model HomeGrid BMS from the czech brand with technology is compatible with xtender range of products. Please check on their siteweb for more info.

Configuration of Xcom-CAN as follow:

[BMS] REC Q

The BMS model Q BMS 16S is compatible with xtender range of products. More info on their website.

Configuration of Xcom-CAN as follow:

[BMS] Orion

The BMS Orion Jr is compatible with xtender range of products. More info on their website.

Configuration of Xcom-CAN as follow:
